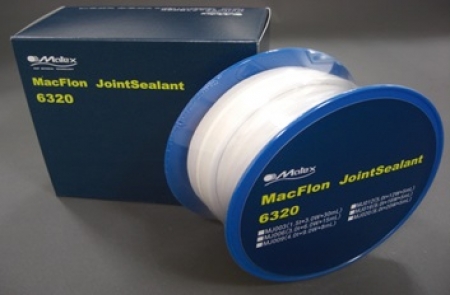

6320 MacFlon joint sealant

MacFlon Joint Sealant is a gasket tape with expanded PTFE encoded.
It can be constructed easily with large diameter flanges and complicated flanges.
Since necessary parts can be constructed as needed, it is possible to reduce costs and reduce emergency cost considerably.

Specification

Heat-resistant performance -100 to 260 ℃
Pressure limit 2.0 MPa
MJ003 Width 3.0 (mm) / Length 30 (m) / Thickness 2.0 (mm)
MJ 006 Width 6.0 (mm) / Length 15 (m) / Thickness 3.0 (mm)
MJ009 Width 9.0 (mm) / Length 8 (m) / Thickness 3.0 (mm)
MJ 012 Width 12.0 (mm) / Length 5 (m) / Thickness 4.0 (mm)
MJ016 Width 16.0 (mm) / Length 5 (m) / Thickness 5.0 (mm)
MJ 020 Width 20.0 (mm) / Length 5 (m) / Thickness 5.0 (mm)

Additional information

Application

Large diameter flange
Shape complicated flange

Specialty

Excellent chemical resistance
Excellent flexibility
Excellent workability
Cost performance
