6500/6500 L

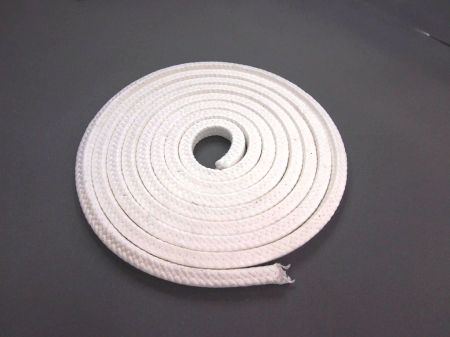

The 6500 product is a gland packing made by braiding expanded PTFE fiber in cross section.
Because the base material is 100% PTFE, it has excellent chemical resistance.
In addition, since packing is finished specifications flexibly, it is excellent in familiarity to the shaft, handling property, and can be used with confidence in the long term.
There is also a special lubrication processed 6500L product.

SKU: 6500/6500 L Category: Tags: , ,


Heatproof temperature 260 ℃
Pressure resistance 1.6 MPa (pump)
5.0 MPa (valve)
Peripheral velocity 5 m / s
PV value 12.3 MPa · m / s
pH value 0-14
Applied fluid Clear sea water, heated water, boiler feed water, solvent, weak acid, weak alkali, strong alkali type, pulp liquid, polymer, refrigerant etc.
Standard dimensions 6.5 mm □ ~ 25.0 mm □
Standard length 3 mL / Case
Notes Since it does not conform to the food sanitation law food and additives standards standards, it can not be used for fluids that do not like pollution of water, medicine, foods etc.
Please contact us for details.

Additional information


Various rotary equipment


Shaft abrasion is small.
Heat shrinkage is small.
Chemical resistance is excellent. Excellent
sealing property. No
contamination. Excellent handleability
Excellent compatibility with
