6570

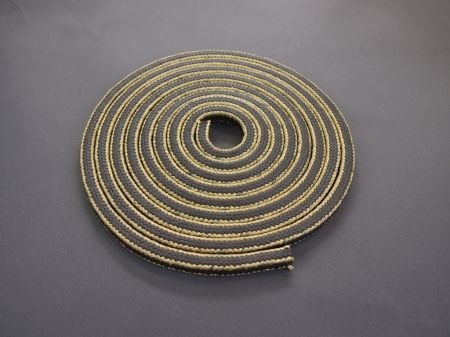

The 6570 product is a gland packing made by braiding graphite and special lubricant-containing PTFE fiber and aramid fiber in cross section.
Since the gland packing corner is braided so that it becomes aramid fiber, it prevents the packing from protruding.
It can be used for applications requiring more pressure and high load than the 6520 product.

Specification

Heatproof temperature 260 ℃
Pressure resistance 2.0 MPa
Peripheral velocity 14.7 m / s
PV value 14.7 MPa · m / s
pH value 2-13
Applied fluid Slurry liquid, heated water, boiler feed water, animal and vegetable oil, crude oil, heavy oil, pulp liquid, powder, slurry etc.
Standard dimensions 6.5 mm □ ~ 25.0 ㎜ □
Standard length 3 mL / Case
Notes Please contact us for details.

Additional information

Application

Pump
stirrer
Various rotary equipment

Specialty

Suppression of gland packing protrusion Can
be used under high circumferential speed conditions
Excellent in chemical resistance Excellent
sealability Excellent
pressure resistance
Slurry and high viscosity fluid available
Handling is excellent
