8515 (TA-Luft VDI 2440 & API 622 2nd certified)

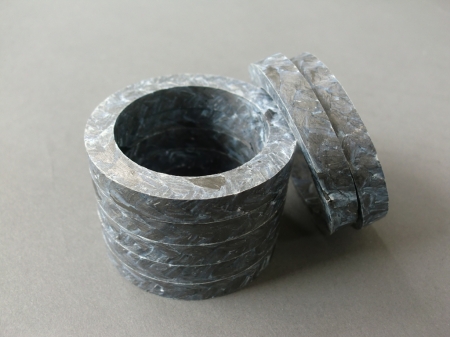

It is a gland packing made by braiding yarn (PAT) containing PTFE film in the outer covering of MacFoil (expanded graphite) in a cross-sectional angular shape.
Since the surface of the gland packing is covered with the PTFE film, the thermal expansion during thermal cycling and the relaxation of thermal shrinkage stress (surface pressure lowering) in the PTFE-based gland packing have been greatly suppressed, I will.
This is a new type of gland packing that can achieve stable performance over a long period of time.

SKU: 8515 Category: Tags: ,

Specification

Heatproof temperature -200 to 300 ℃
Pressure resistance 10.3 MPa (Class 600)
Applied fluid Water, oil, steam, thermal oil, solvent, gas, LNG, etc.
Product shape Ring molding product, coil packing
Standard dimensions 3.0 to 25.0 mm □
Standard coil length 3 mL / Case
Notes It can not be used for fluids such as oxidizing acid type, oxidizing salt type, halogen compound type and combustion supporting gas.
Please contact us for details.
Other TA-Luft VDI 2440 & API 622 2nd Certification

Additional information

Application

Valve pump

Speciality

Excellent sealing property
Excellent in chemical resistance
Low stress relaxation (reduction in surface pressure)
Low sliding resistance Low stability Stable use alone
