8530 (TA-Luft VDI 2440 certified)

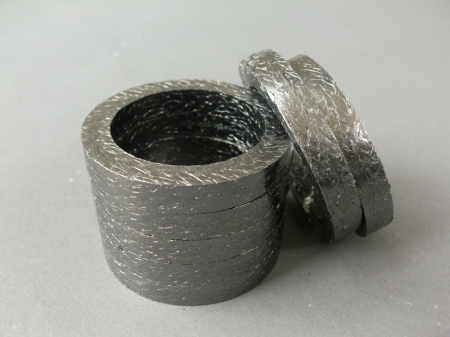

It is a gland packing subjected to a heat resistant special impregnation treatment after braiding yarns reinforced with Inconel ® wire on the outside of MacFoil (expanded graphite) in a cross section shape.
Because of the structure that the metal reinforcing wire and heat resistant impregnation treatment is applied to the MacFoil base material, it is excellent in pressure resistance, excellent in pressure resistance and sealing property.
Both heat resistance, pressure resistance and chemical resistance can be handled in a wide range, and the withdrawability of packing at the time of maintenance has also been greatly improved.

SKU: 8530 Category: Tags: ,

Specification

Heatproof temperature -200 to 600 ℃ * Oxidizing atmosphere 420 ℃
Pressure resistance 43.1 MPa (Class 2500)
Applied fluid Water, oil, steam, thermal oil, solvent, gas, LNG, etc.
Product shape Ring molding product, coil packing
Standard dimensions 3.0 mm □ ~ 25.0 ㎜ □
Standard coil length 3 mL / Case
Notes It can not be used for fluids such as oxidizing acid type, oxidizing salt type, halogen compound type and combustion supporting gas.
Please contact us for details.
Other TA-Luft VDI 2440 certified

Additional information

Application

Valve
furnace frame

Specialty

Excellent in chemical resistance Excellent in
pressure resistance Low
stress relaxation (reduction in surface pressure)
Low sliding resistance Low
sealing stability Excellent in
maintainability (packing drawability)
