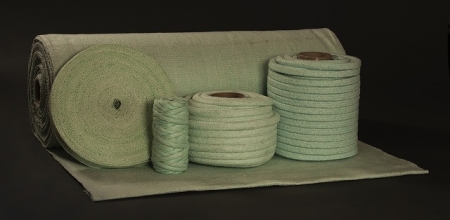

MacThermo Bio series (biosoluble fiber)

Mac ThermoBio is a textile product based on yarn reinforced with metal wire for biosoluble refractory fiber (bio-soluble fiber).
For fibers excluded from carcinogenicity classification against EU directive 97/69 / EC in addition to heat resistance, it can be used with confidence as a substitute for refractory ceramic fiber.

SKU: 3520 B series Categories: , , Tags: , ,

Specification

Color tone Light green
Heatproof temperature 1000 ° C (short time)
900 ° C (continuous)
Standard dimensions 3520 B Braid Packing Square Type (Metal Wire Reinforcement) 6.5 mm □ ~ 25.0 mm □
3520 BD Braided Packing Round Type (Metal Wire Reinforcement) φ 9.5 mm to φ 25.0 mm 3540
BD Soft Circular Packing φ 19
mm to φ 90 mm 3510 BY Yarn Rope (Glass Reinforcement) φ 3. 2 mm to φ
25.0 mm 3520 BY Yarn rope (reinforced metal wire) φ 3.2 mm to φ 25.0 mm 3920
B Cross metal wire reinforced
thickness: 2.0 mm T, 3.0 mm T width: 1000 mm W each 3911
B ribbon glass reinforced
thickness: 2.0 mm T, 3.0 mm T width: 50 mm W each , 75 mm W, 100
mm W 3921 B Ribbon Metal Wire Reinforcement
Thickness: 2.0 mm T, 3.0 mm T Width: 50 mm W, 75 mm W, 100 mm W each※ Also available for non-standard dimensions and lengths.
For details please contact our person in charge.
Standard length 3520B 30mL / 1 case
3520BD 30mL / 1 case
3540BD 10 ~ 30mL / 1 case ※ due to dimensional
3510BY 1kg winding, by 30mL / 1 case ※ size
3520BY 1kg winding, 30mL / 1 case ※ dimension by
3920B 30mL / 1 Case
3911B 30mL / 1 case
3921 B 30 mL / 1 case
performance test Heat shrinkage rate (1000 ° C. – 8 Hrs) 3.0%
Heat loss rate (1000 ° C. – 8 Hrs) 15.0%
Notes Since there is smoke at the start of temperature rise, please use after skipping sufficiently by sky firing etc.
PDF Catalog Click here for catalog download

Additional information

Application

· Various duct · manhole gasket
· blank furnace CDQ periphery
· incinerator peripheral equipment
· periphery of exhaust heat recovery boiler
· nonmetal expansion · hopper base material
· various heat insulating base materials

Specialty

· It is optimum as a substitute from the refractory ceramic fiber (RCF) product.
· A lineup tailored to various uses such as cross, ribbon.
· Excellent heat resistance.
· Because of the yarn construction with metal reinforcement wire, it is excellent in handling.
· It is optimum as a reinforcement material for heat insulation and heat insulation.
