MacThermo HT series (special heat resistant glass)

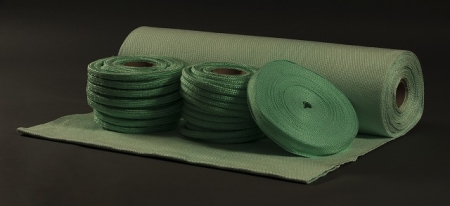

1510HT MacThermo HT series is a heat-resistant textile product made with packing made with special heat-resistant glass fiber yarn. It is optimal as a substitute when there is a problem such as brittleness in bio-soluble fiber products, because it is a fiber that also has mechanical strength in addition to heat resistance.

SKU: 1510HT series Categories: , , Tags: , , , , , , , ,

Description

Color tone Light green
Heatproof temperature 800 ° C (short time)
700 ° C (continuous)
Standard dimensions 1010HT Cross thickness: 2.0,
3.0 mm T 1011 HT Ribbon thickness: 2.0 mm T, width: 25 to 100
mm W 1510 HT braided packing Square type 6.5 mm □ ~ 25.0 mm □
1510 HTT Braided packing round shape φ 9.5 mm to 25.0 mm
* Dimensions and length It is also possible to deal with.
For details please contact our person in charge.
Standard length Each 30 mL / case
performance test Heat shrinkage rate (700 ° C./8 Hrs): 0.1%
Heat loss rate (700 ° C./8 Hrs): 0.1%
Notes Since there is smoke at the start of temperature rise, please use after skipping sufficiently by sky firing etc.
Please contact us for details.
PDF Catalog Click here for catalog download

Additional information

Application

· Various duct · manhole gasket
· blank furnace CDQ periphery
· incinerator peripheral equipment
· periphery of exhaust heat recovery boiler
· nonmetal expansion · hopper base material
· various heat insulating base materials
Specialty

Excellent in heat resistance, heat retention and heat insulation Excellent in
mechanical strength
Exhaust gas and hot air can be used
